9-6437287-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

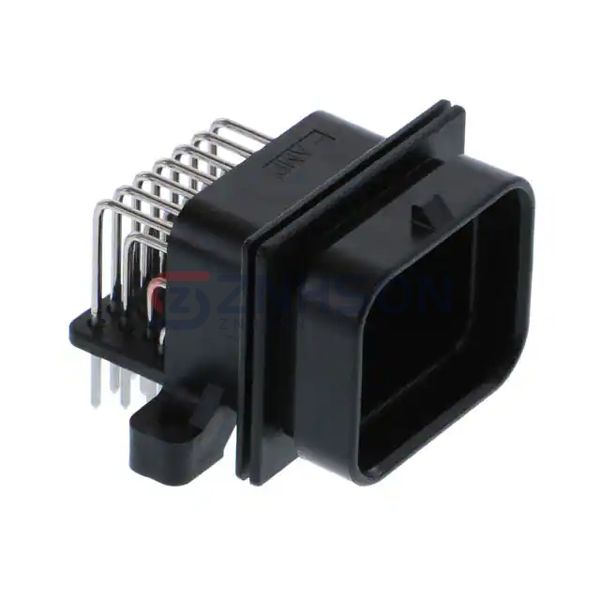

CONN HEADER R/A 26POS
$19.77
Available to order
Reference Price (USD)
1+
$14.52000
16+
$13.20000
112+
$11.22027
512+
$9.57020
1,008+
$8.77818
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 9-6437287-8 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 26
- Number of Rows: 4
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: -
- Insulation Height: 1.079" (27.40mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: -
- Current Rating (Amps): -
- Voltage Rating: 250V
