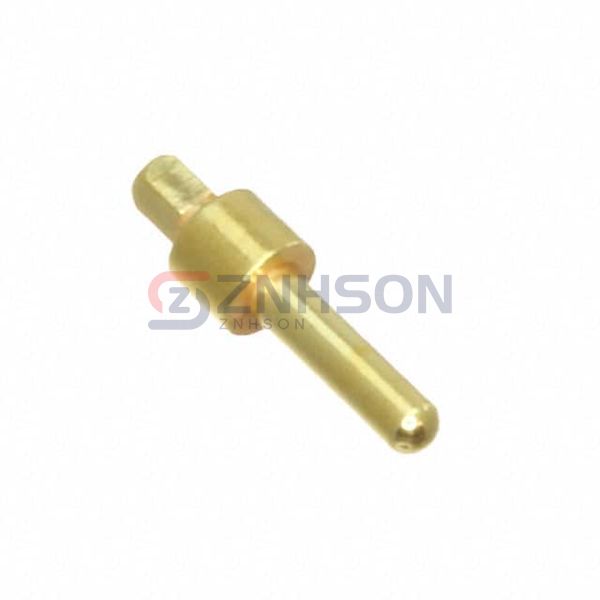

9003-0-00-15-00-00-03-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
$0.25
Available to order
Reference Price (USD)
1+
$0.27000
10+
$0.25400
25+
$0.21640
50+
$0.18920
100+
$0.17580
250+
$0.15548
500+
$0.14872
1,000+
$0.12168
2,500+
$0.11154
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-notch performance with 9003-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, designed to meet the highest industry standards. With benefits such as easy installation, superior conductivity, and resistance to environmental factors, these connectors are perfect for automotive, aerospace, and consumer electronics. Get started today by sending us your inquiry, and we ll provide the best solutions tailored to your needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.160" (4.06mm)
- Length - Below Flange: 0.060" (1.52mm)
- Length - Overall: 0.280" (7.11mm)
- Flange Diameter: 0.078" (1.98mm)
- Mounting Hole Diameter: 0.047" (1.19mm)
- Mounting Type: Through Hole
- Termination: Press-Fit
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
