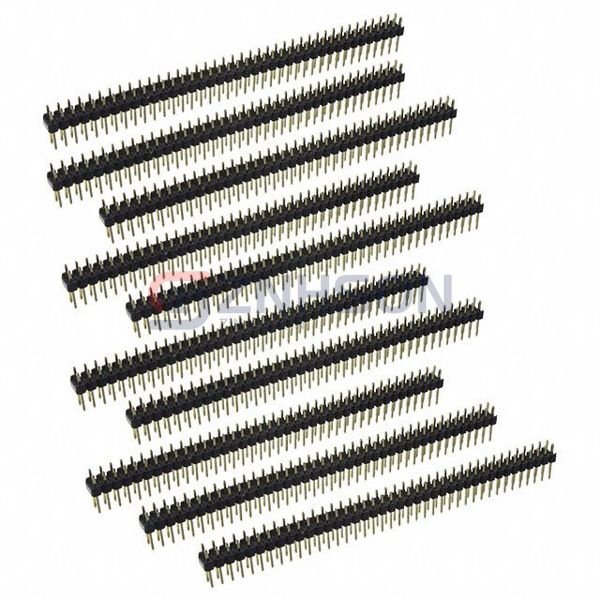

920-0012-01
Schmartboard, Inc.
Schmartboard, Inc.
CONN HEADER VERT 80P 2.54MM 10PC
$8.00
Available to order
Reference Price (USD)
1+
$8.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 920-0012-01 Schmartboard, Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.457" (11.61mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
BKT-131-05-L-V-S
Samtec Inc.

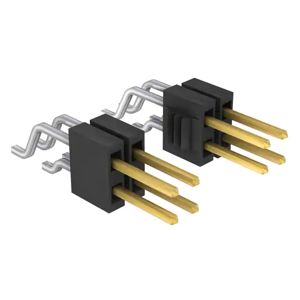

FTSH-114-01-L-DH-C-TR
Preci-Dip

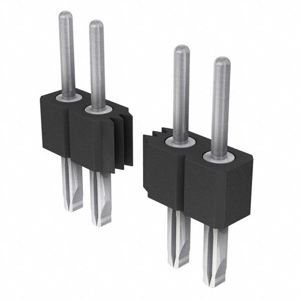

800-80-029-66-001101
Preci-Dip

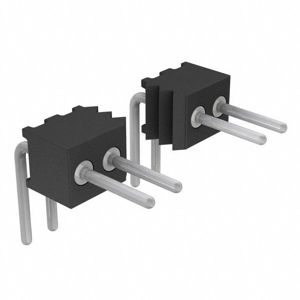

850-80-034-20-001101
Sullins Connector Solutions

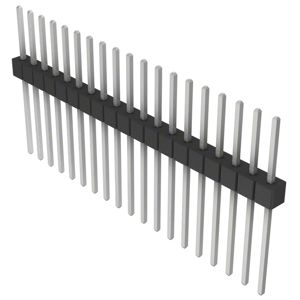

PEC19SFEN
Preci-Dip

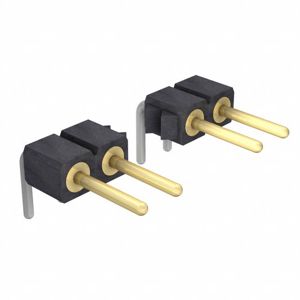

800-V3-047-20-001101
Samtec Inc.

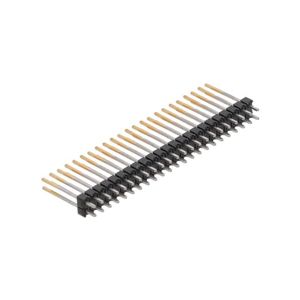

TSW-123-15-F-D
