9260-0-00-15-00-00-03-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

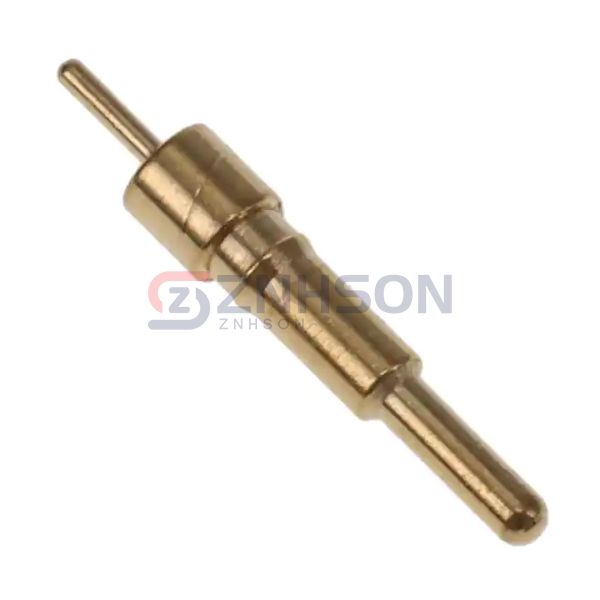

DOUBLE TAIL HEADER PIN
$0.57
Available to order
Reference Price (USD)
1+
$0.57000
500+
$0.5643
1000+
$0.5586
1500+
$0.5529
2000+
$0.5472
2500+
$0.5415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your connectivity solutions with 9260-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, crafted for precision and durability. These connectors offer features like solderless termination, EMI shielding, and high cycle life, making them suitable for telecommunications and industrial automation. Partner with us for reliable products and exceptional service contact our sales team today.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.036" (0.91mm) Dia
- Pin Size - Below Flange: 0.019" (0.48mm) Dia
- Length - Above Flange: 0.268" (6.81mm)
- Length - Below Flange: 0.093" (2.36mm)
- Length - Overall: 0.428" (10.87mm)
- Flange Diameter: 0.072" (1.83mm)
- Mounting Hole Diameter: 0.057" (1.45mm)
- Mounting Type: Through Hole
- Termination: Press-Fit
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
