9277012002
Fair-Rite Products Corp.
Fair-Rite Products Corp.

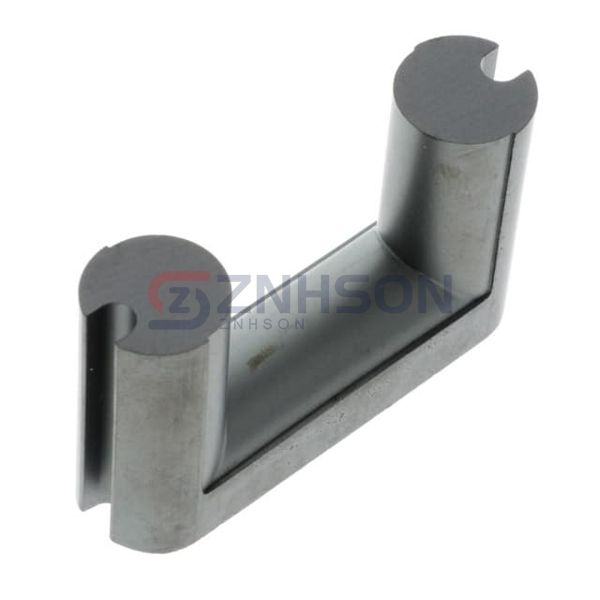

77 U CORE
$4.06
Available to order
Reference Price (USD)
1+
$3.90000
10+
$3.34000
25+
$2.50480
50+
$2.43500
100+
$2.15680
250+
$2.01760
500+
$1.87848
1,000+
$1.73933
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium Fair-Rite Products Corp. 9277012002 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: U
- Supplier Device Package: -
- Material: 77
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2000
- Core Factor (ΣI/A) mm-1: 138
- Effective Length (le) mm: 135
- Effective Area (Ae) mm²: 98
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 13200
- Finish: Uncoated
- Height: 1.000" (25.40mm)
- Length: 1.620" (41.15mm)
- Width: 0.460" (11.68mm)
