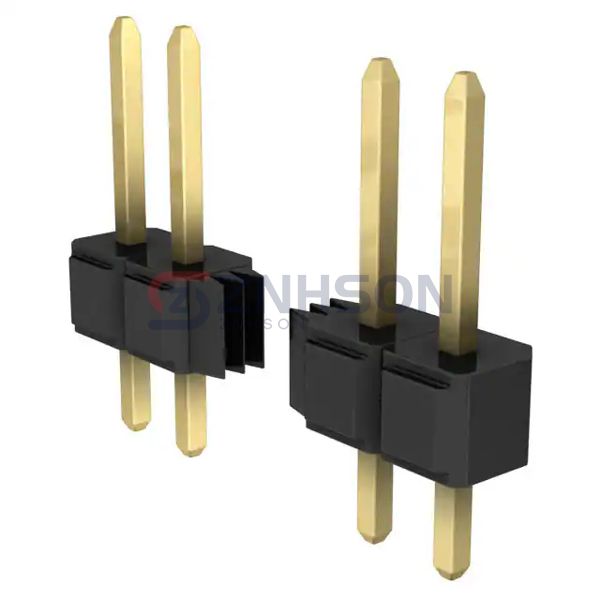

929647-01-22-EU
3M
3M
CONN HEADER VERT 22POS 2.54MM
$5.48
Available to order
Reference Price (USD)
1+
$5.22000
10+
$5.01200
25+
$4.59480
50+
$4.38600
100+
$4.17710
250+
$3.65492
500+
$3.55050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 929647-01-22-EU 3M Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
852-10-016-20-001101
JST Sales America Inc.
B8PS-VH(LF)(SN)
Preci-Dip
892-18-032-10-001101
Samtec Inc.

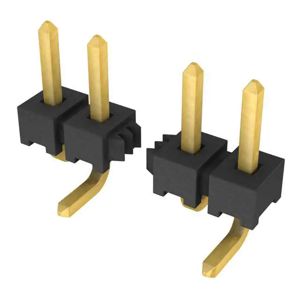

TMM-123-01-G-S-SM
Preci-Dip
860-10-042-10-001101
Samtec Inc.
BKT-141-01-L-V-S-A
Samtec Inc.

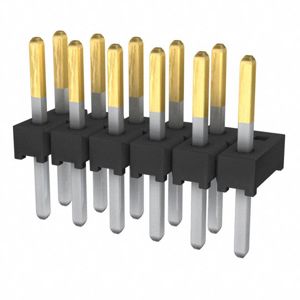

TMM-106-02-S-D-012
