929648-04-20-EU

3M

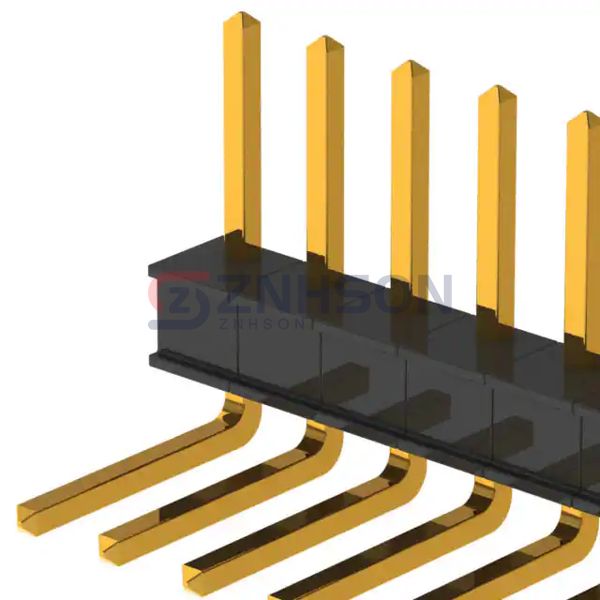

929648-04-20-EU Preview
3M
CONN HEADER R/A 20POS 2.54MM
$3.86
Available to order
Reference Price (USD)
1+
$3.68000
10+
$3.53300
25+
$3.23840
50+
$3.09120
100+
$2.94400
250+
$2.57600
500+
$2.50240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 20
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.235" (5.97mm)
  • Contact Length - Post: 0.225" (5.72mm)
  • Overall Contact Length: -
  • Insulation Height: 0.115" (2.92mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Gold
  • Contact Material: Copper Alloy
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features: -
  • Operating Temperature: -40°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 2.5A
  • Voltage Rating: -
