929667-02-22-I
3M
3M

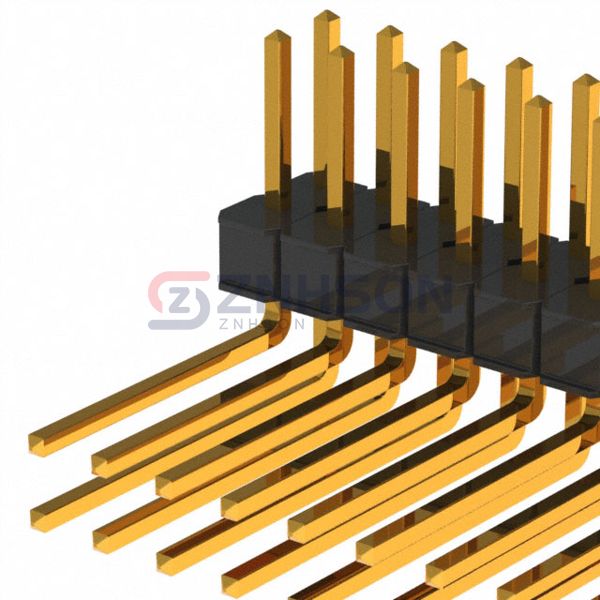

CONN HEADER R/A 44POS 2.54MM
$10.43
Available to order
Reference Price (USD)
1+
$9.93000
10+
$9.49900
25+
$8.63560
50+
$8.20400
100+
$7.98810
250+
$7.12448
500+
$6.69270
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929667-02-22-I 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 44
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.405" (10.29mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
