929667-04-28-I
3M
3M
CONN HEADER R/A 56POS 2.54MM
$12.69
Available to order
Reference Price (USD)
1+
$12.09000
10+
$10.99100
25+
$10.71600
50+
$9.89180
100+
$9.34230
250+
$8.51796
500+
$7.96844
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929667-04-28-I 3M Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the 3M difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 56
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-108-03-F-D
Samtec Inc.
FTSH-111-05-L-DV-A
Molex
1510482209
Molex
1726480102
TE Connectivity AMP Connectors
1-1969584-0
TE Connectivity AMP Connectors

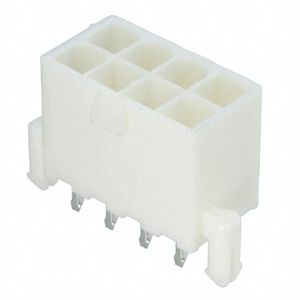

1586040-8
Samtec Inc.

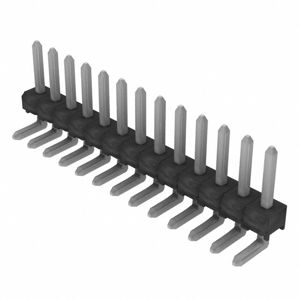

TSW-113-08-T-S-RA
Preci-Dip

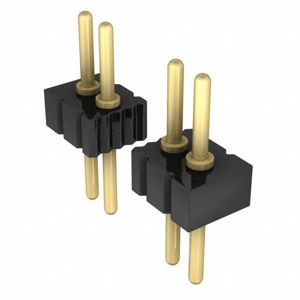

860-10-050-10-001101
Samtec Inc.

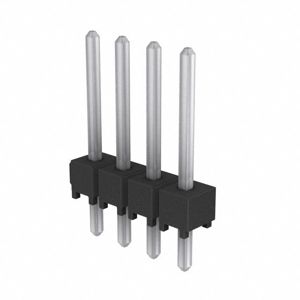

TSW-104-14-T-S
