929700-01-14-RK
3M
3M

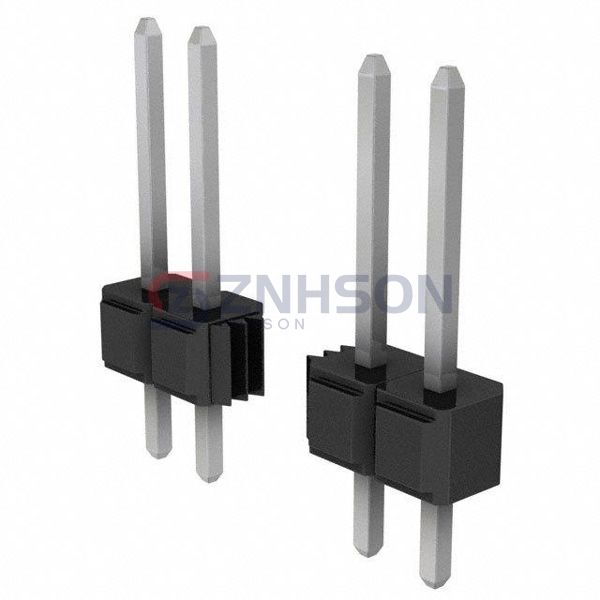

CONN HEADER VERT 14POS 2.54MM
$1.41
Available to order
Reference Price (USD)
1+
$1.34000
10+
$1.18000
25+
$1.11120
50+
$1.06480
100+
$1.01840
250+
$0.92588
500+
$0.83328
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929700-01-14-RK 3M Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-102973-0-20
Samtec Inc.
ZSS-112-05-G-D-720
TE Connectivity AMP Connectors
1-640385-8
Adam Tech
DML-24-A-H-T-A
Samtec Inc.
FTE-150-03-G-DV-A
TE Connectivity AMP Connectors
5102321-2
Amphenol ICC (FCI)
75160-318-03LF
Harwin Inc.

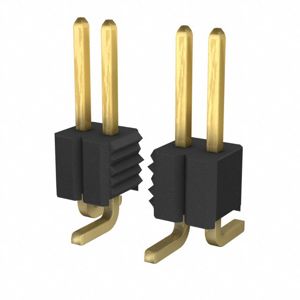

M52-040000P2545
