929715-01-26-I
3M
3M
CONN HEADER VERT 52POS 2.54MM
$13.04
Available to order
Reference Price (USD)
1+
$12.42000
10+
$11.28700
25+
$11.00520
50+
$10.15880
100+
$9.59430
250+
$8.74780
500+
$8.18340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929715-01-26-I 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 52
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-143-01-F-S
HARTING
15110806601000
Sullins Connector Solutions
PBC29DAEN
Preci-Dip
852-80-026-30-001101
Preci-Dip
852-10-052-10-001101
Samtec Inc.
TSM-107-02-T-DV-P-TR
TE Connectivity AMP Connectors
1-826629-2
Samtec Inc.
FTMH-108-02-F-DV-A-P
Samtec Inc.

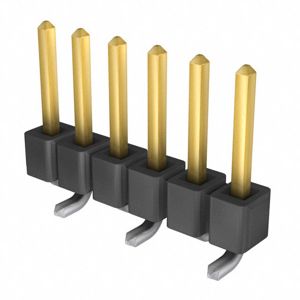

TSM-106-01-LM-SV-P
