929836-01-08
3M
3M

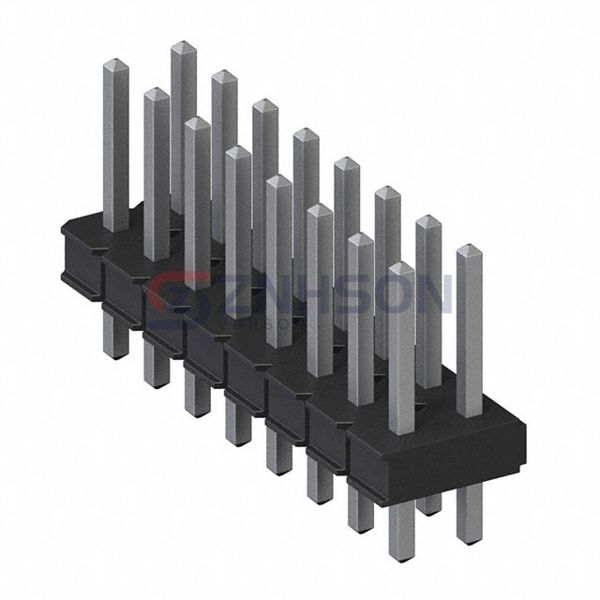

CONN HEADER VERT 16POS 2.54MM
$1.46
Available to order
Reference Price (USD)
1+
$1.39000
10+
$1.26000
25+
$1.18240
50+
$1.13100
100+
$1.07970
250+
$0.97684
500+
$0.89972
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929836-01-08 3M Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust 3M for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
