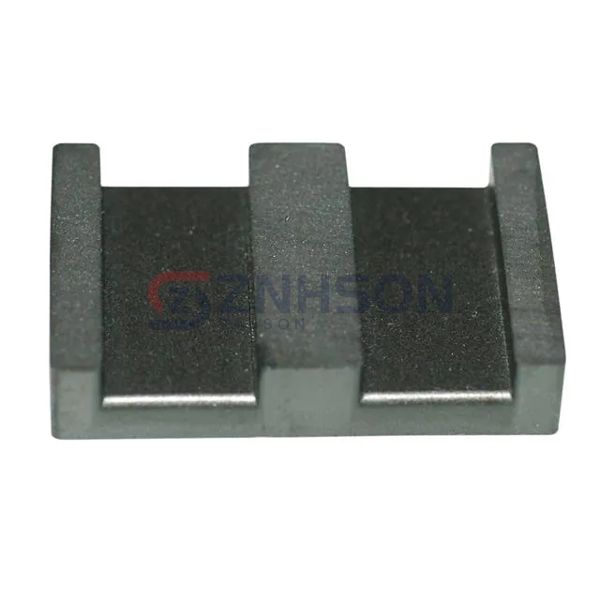

9478207002
Fair-Rite Products Corp.
Fair-Rite Products Corp.
78 PLANAR E CORE SET
$16.49
Available to order
Reference Price (USD)
30+
$7.47467
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with Fair-Rite Products Corp. 9478207002 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: -
- Material: 78
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 15.4
- Effective Length (le) mm: 80.7
- Effective Area (Ae) mm²: 520
- Minimum Core Cross Section (Amin) mm²: 515
- Effective Magnetic Volume (Ve) mm³: 41500
- Finish: Uncoated
- Height: 0.407" (10.34mm)
- Length: 2.520" (64.00mm)
- Width: 2.008" (51.00mm)
Related Products
EPCOS - TDK Electronics
B66482G0000X197
EPCOS - TDK Electronics

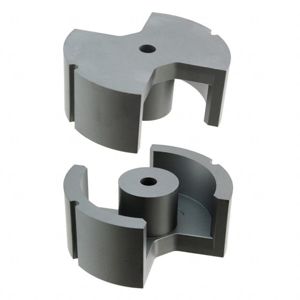

B65713A0000R087
Ferroxcube

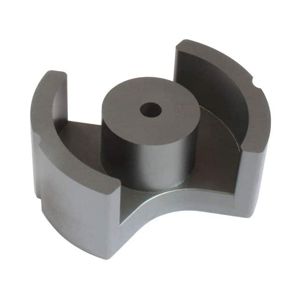

PM87/70-3C94
Laird-Signal Integrity Products

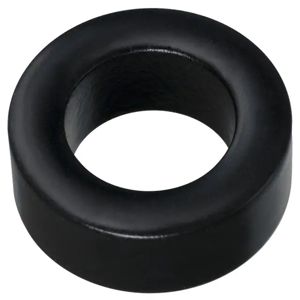

35T1000-00H
EPCOS - TDK Electronics

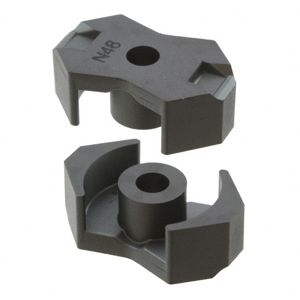

B65807C0000R048
EPCOS - TDK Electronics

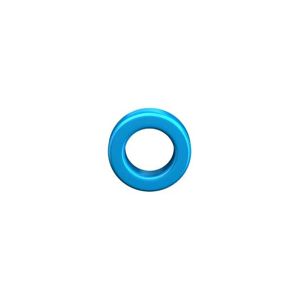

B64290L0638X035
EPCOS - TDK Electronics

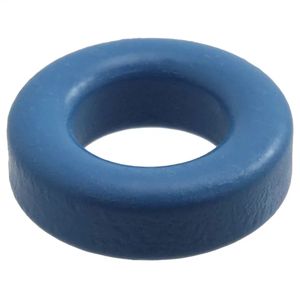

B64290L0743X087
EPCOS - TDK Electronics

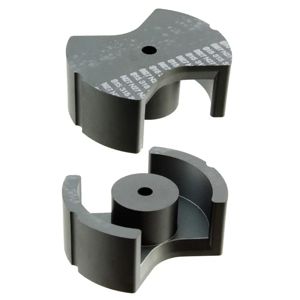

B65684A0315A027
Ferroxcube

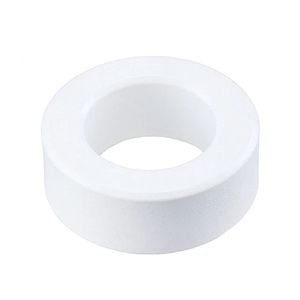

TX36/23/15-3E12
