961212-6404-AR
3M
3M
CONN HEADER VERT 12POS 2.54MM
$1.02
Available to order
Reference Price (USD)
1+
$0.97000
10+
$0.85300
25+
$0.80240
50+
$0.76920
100+
$0.73570
250+
$0.66880
500+
$0.60192
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

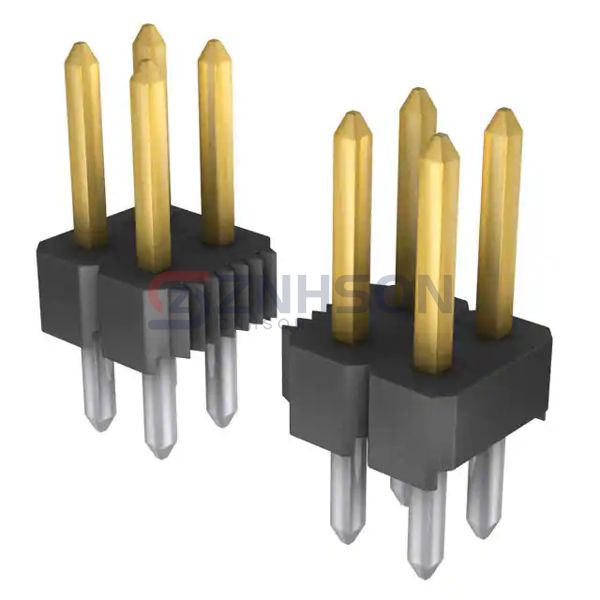

The 961212-6404-AR 3M Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
