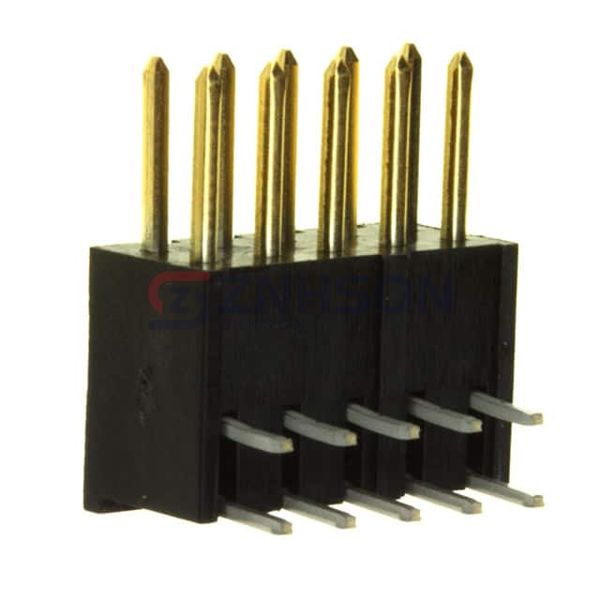

A1-10PA-2.54DS(71)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 10
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.236" (6.00mm)
• Contact Length - Post: 0.118" (3.00mm)
• Overall Contact Length: -
• Insulation Height: 0.236" (6.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: -
• Operating Temperature: -55°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: 200V
