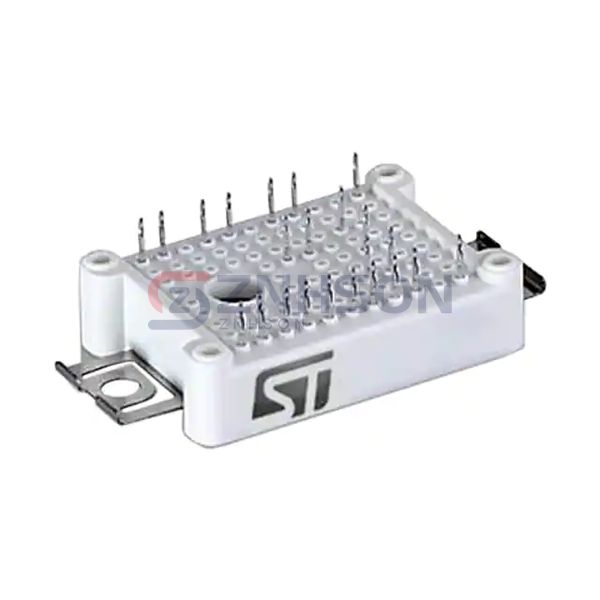

A1P25S12M3-F
STMicroelectronics
STMicroelectronics
IGBT MOD 1200V 25A 197W ACEPACK1
$50.28
Available to order
Reference Price (USD)
1+
$39.52000
36+
$34.80750
108+
$31.12204
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's A1P25S12M3-F IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 25 A
- Power - Max: 197 W
- Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 25A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: 1.55 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: ACEPACK™ 1
Related Products
Microchip Technology
APTGT75SK120TG
Vishay General Semiconductor - Diodes Division
VS-ETF075Y60U
Fairchild Semiconductor
FMG1G50US60L
Infineon Technologies

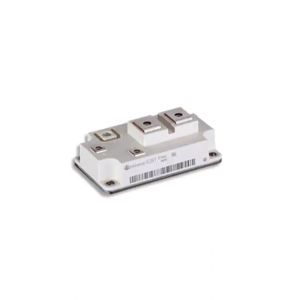

FZ600R12KS4HOSA1
Infineon Technologies

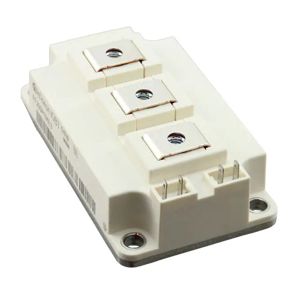

FF200R17KE3HOSA1
Infineon Technologies

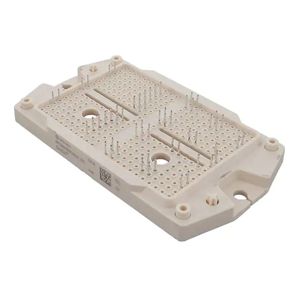

FF2MR12W3M1HB11BPSA1
Infineon Technologies

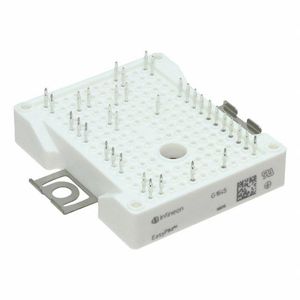

F3L150R07W2E3B11BOMA1
Infineon Technologies

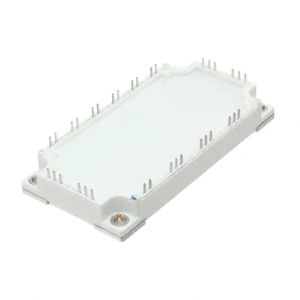

FS150R17N3E4B11BOSA1
Infineon Technologies

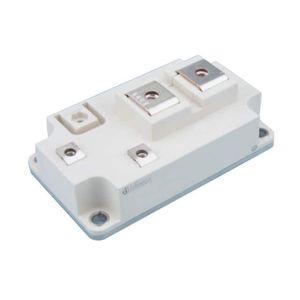

FZ800R33KF2CS1NDSA1
