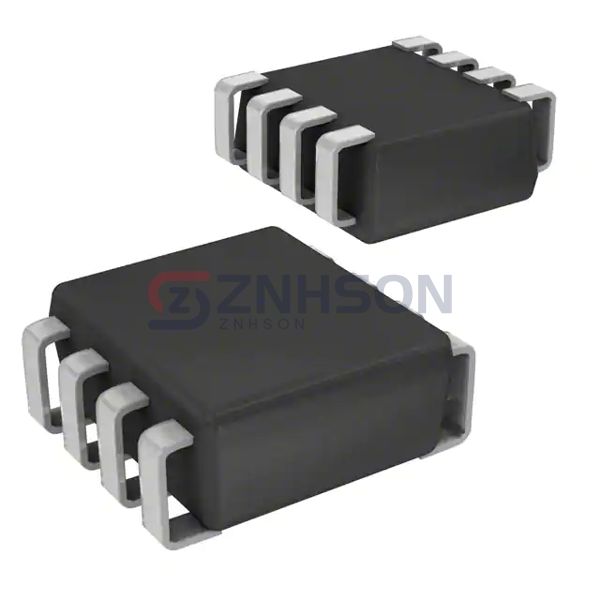

AAT4901IJS-1-T1
Skyworks Solutions Inc.
Skyworks Solutions Inc.
5V POWER DUAL HALF BRIDGE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Skyworks Solutions Inc. AAT4901IJS-1-T1 series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (2)
- Applications: DC Motors, Solenoids, Transformers
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 200mOhm LS, 240mOhm HS
- Current - Output / Channel: 700mA
- Current - Peak Output: 3A
- Voltage - Supply: 2V ~ 5.5V
- Voltage - Load: 2V ~ 5.5V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, Shoot-Through
- Mounting Type: Surface Mount
- Package / Case: 8-TFSOJ (0.069", 1.75mm Width)
- Supplier Device Package: 8-SC70JW
