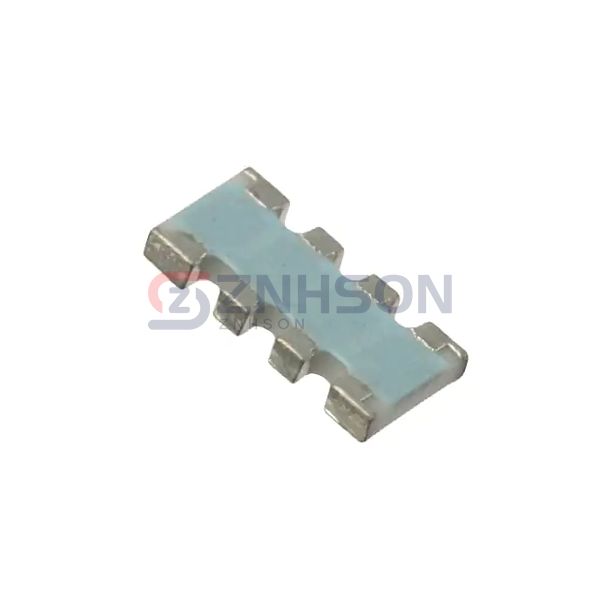

ACASA100023000P100
Vishay Beyschlag/Draloric/BC Components
Vishay Beyschlag/Draloric/BC Components
RES ARRAY 4 RES MULT OHM 1206
$0.27
Available to order
Reference Price (USD)
1,000+
$0.16240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Beyschlag/Draloric/BC Components's ACASA100023000P100 resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every ACASA100023000P100 unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 100, 300
- Tolerance: ±0.5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 100mW
- Temperature Coefficient: ±50ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Convex, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
- Height - Seated (Max): 0.022" (0.55mm)
