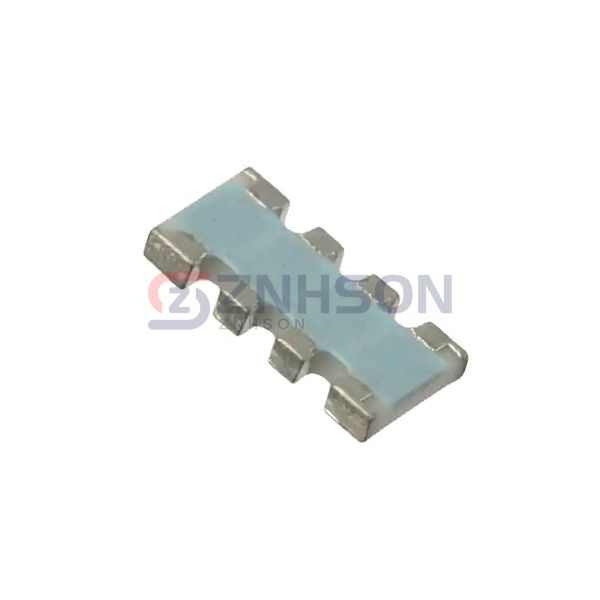

ACASA1002U1002P1AT
Vishay Beyschlag/Draloric/BC Components
Vishay Beyschlag/Draloric/BC Components
ACAS 0612 10K U 10K AT P1
$1.99
Available to order
Reference Price (USD)
1,000+
$0.82459
2,000+
$0.80874
5,000+
$0.79922
10,000+
$0.77702
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Beyschlag/Draloric/BC Components's ACASA1002U1002P1AT resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every ACASA1002U1002P1AT unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 10k
- Tolerance: ±0.1%
- Number of Resistors: 4
- Resistor Matching Ratio: ±0.05%
- Resistor-Ratio-Drift: ±5ppm/°C
- Number of Pins: 8
- Power Per Element: 125mW
- Temperature Coefficient: ±10ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Applications: Automotive AEC-Q200, Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Convex, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
- Height - Seated (Max): 0.022" (0.55mm)
Related Products
YAGEO

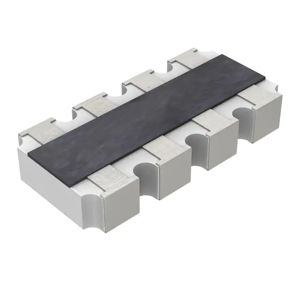

YC164-FR-073R9L
YAGEO

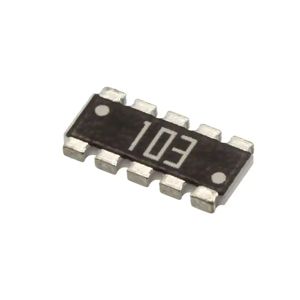

YC358LJK-0791KL
YAGEO

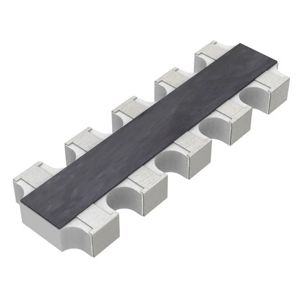

YC158TJR-0747KL
YAGEO

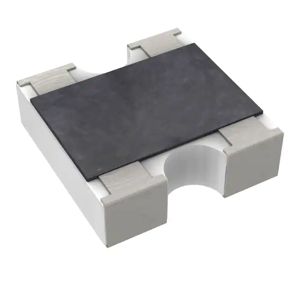

YC122-FR-077K5L
CTS Resistor Products
770101122P
CTS Resistor Products

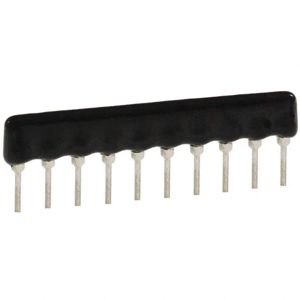

770103202P
Bourns Inc.

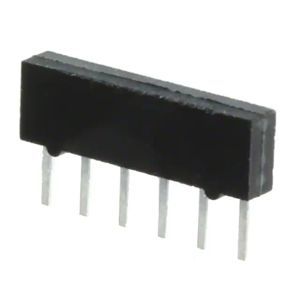

4306R-102-151LF
CTS Resistor Products
766143154GP
CAL-CHIP ELECTRONICS, INC.

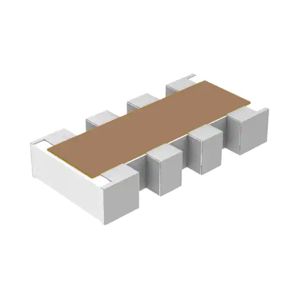

CN34J103CT
