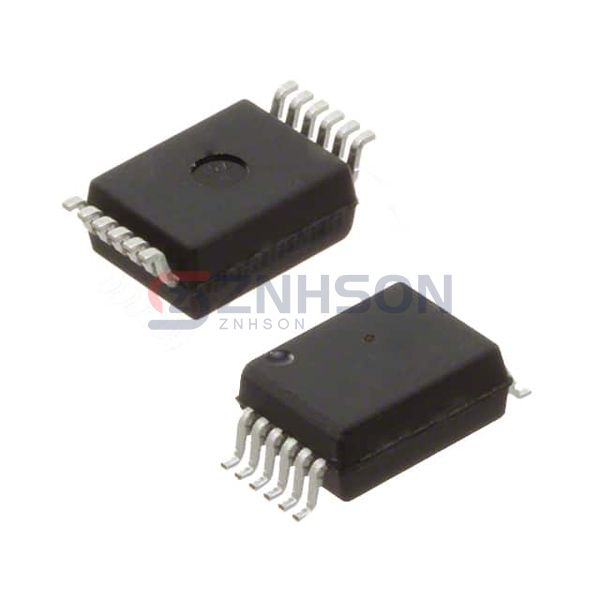

ACFL-6211U-560E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 2CH PSH PULL SO12
$2.92
Available to order
Reference Price (USD)
2,000+
$2.46075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACFL-6211U-560E Optoisolators - Logic Output provide exceptional electrical isolation for your critical circuits. Featuring fast response times, high isolation voltage, and compact design, these optoisolators are suited for applications in renewable energy, automotive electronics, and consumer devices. Enhance your project's safety and efficiency. Get in touch for pricing details!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: -
- Propagation Delay tpLH / tpHL (Max): 35ns, 35ns
- Rise / Fall Time (Typ): 10ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-BSOP (0.295", 7.50mm Width)
- Supplier Device Package: 12-SO
