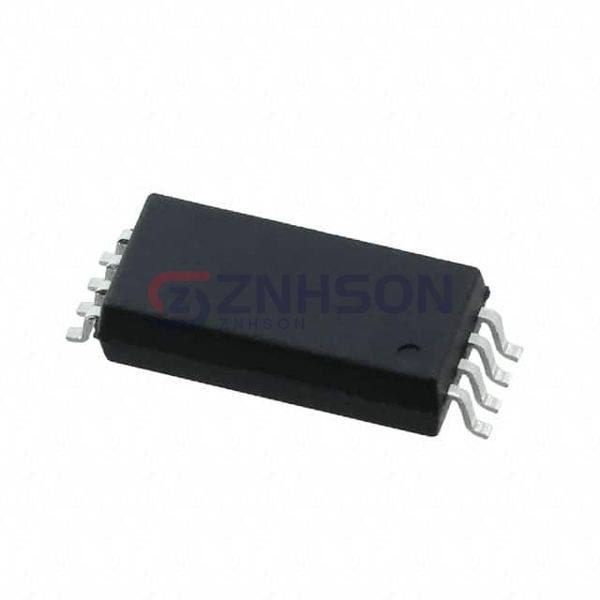

ACNT-H313-500E
Broadcom Limited
Broadcom Limited
OPTOISO 7.5KV 1CH GATE DRVR 8SO
$7.82
Available to order
Reference Price (USD)
1,000+
$3.30876
2,000+
$3.18150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACNT-H313-500E Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 7500Vrms
- Common Mode Transient Immunity (Min): 40kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.543", 13.80mm Width)
- Supplier Device Package: 8-SO
- Approval Agency: CSA, IEC/EN/DIN, UR
