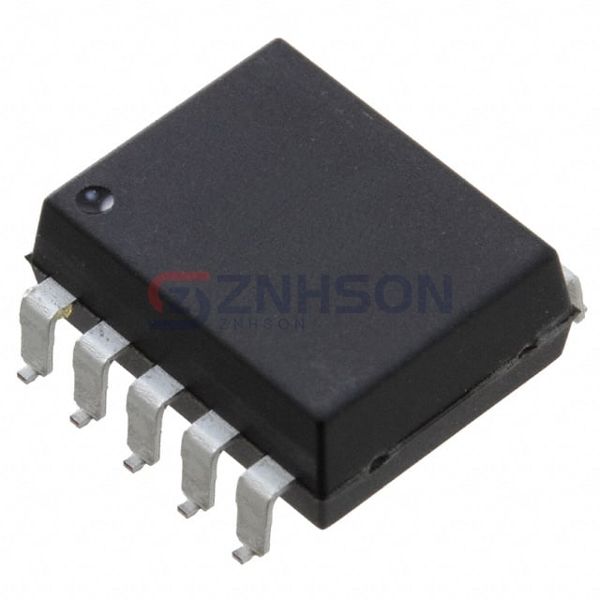

ACNV2601-300E
Broadcom Limited
Broadcom Limited
OPTOISO 7.5KV OPEN COLL 10DIP GW
$7.43
Available to order
Reference Price (USD)
1+
$5.33000
10+
$4.44400
25+
$3.73280
175+
$3.19966
350+
$2.84417
525+
$2.57752
1,050+
$2.36421
2,625+
$2.26644
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Broadcom Limited ACNV2601-300E Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Broadcom Limited for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 7500Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 25ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.64V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 10-SMD, Gull Wing
- Supplier Device Package: 10-DIP Gull Wing
