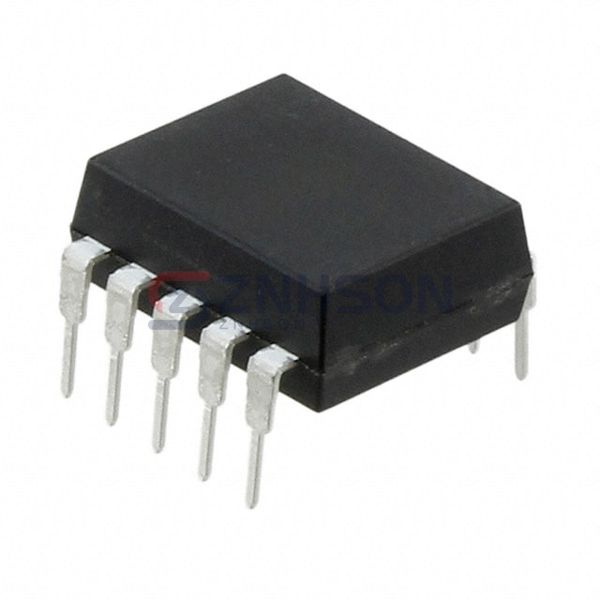

ACNV260E-000E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV OPEN COLLECTOR 10DIP
$13.19
Available to order
Reference Price (USD)
1+
$10.71000
10+
$9.69600
25+
$7.67600
175+
$6.46400
350+
$6.06000
525+
$5.55501
1,050+
$5.25200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited ACNV260E-000E Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 25ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.64V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Through Hole
- Package / Case: 10-DIP (0.512", 13.01mm)
- Supplier Device Package: 10-DIP
