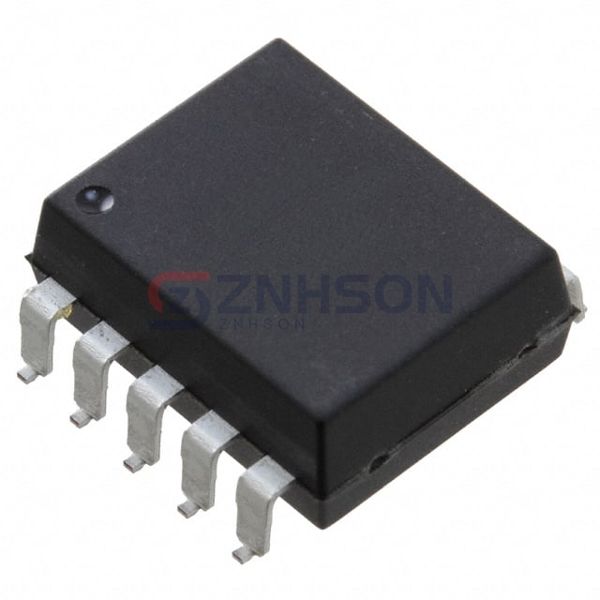

ACNV260E-500E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV OPEN COLL 10DIP GW
$7.29
Available to order
Reference Price (USD)
1,000+
$5.22600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACNV260E-500E Optoisolators - Logic Output provide exceptional electrical isolation for your critical circuits. Featuring fast response times, high isolation voltage, and compact design, these optoisolators are suited for applications in renewable energy, automotive electronics, and consumer devices. Enhance your project's safety and efficiency. Get in touch for pricing details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 25ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.64V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 10-SMD, Gull Wing
- Supplier Device Package: 10-DIP Gull Wing
