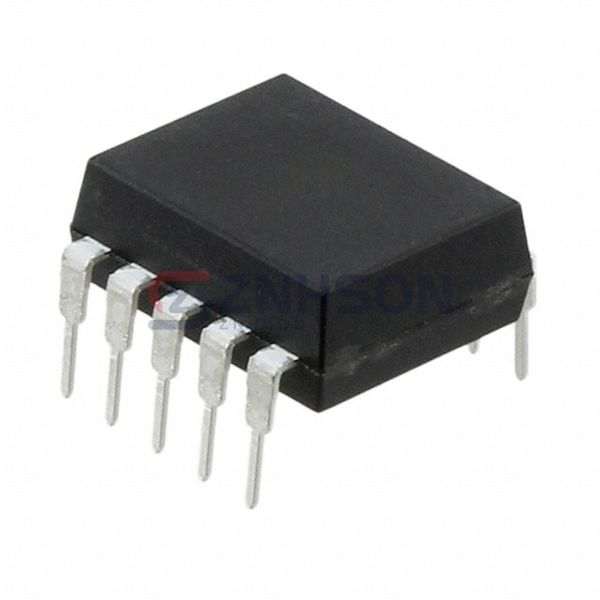

ACNV3130-000E
Broadcom Limited
Broadcom Limited
OPTOISO 7.5KV 1CH GATE DVR 10DIP
$4.43
Available to order
Reference Price (USD)
1+
$7.27000
10+
$6.06000
25+
$5.09040
175+
$4.36320
350+
$3.87840
525+
$3.51480
1,050+
$3.22392
2,625+
$3.09060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACNV3130-000E Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 7500Vrms
- Common Mode Transient Immunity (Min): 40kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Through Hole
- Package / Case: 10-DIP (0.512", 13.01mm)
- Supplier Device Package: 10-DIP
- Approval Agency: CSA, IEC/EN/DIN, UR
