ACNW261L-000E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV TRI-STATE 8DIP
$6.33
Available to order
Reference Price (USD)
1+
$4.55000
10+
$3.78800
42+
$3.18143
126+
$2.72698
252+
$2.42401
504+
$2.19675
1,008+
$2.01495
2,520+
$1.93163
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACNW261L-000E Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with Broadcom Limited for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Tri-State
- Current - Output / Channel: 10 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 95ns, 95ns
- Rise / Fall Time (Typ): 12ns, 12ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 8mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.400", 10.16mm)
- Supplier Device Package: 8-DIP
Related Products
Broadcom Limited
HCPL-2430#300
Broadcom Limited
HCPL-2631-320E
Broadcom Limited
HCPL-5630
Broadcom Limited
ACPL-4800-500E
Broadcom Limited
HCPL-0600#560
Broadcom Limited
HCPL-261N#060
Renesas Electronics America Inc
PS9122-F3-N-AX
Toshiba Semiconductor and Storage

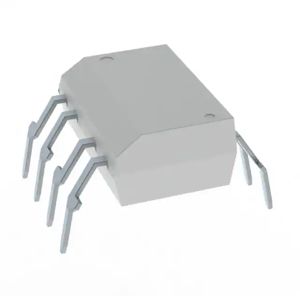

TLP2662(F)
