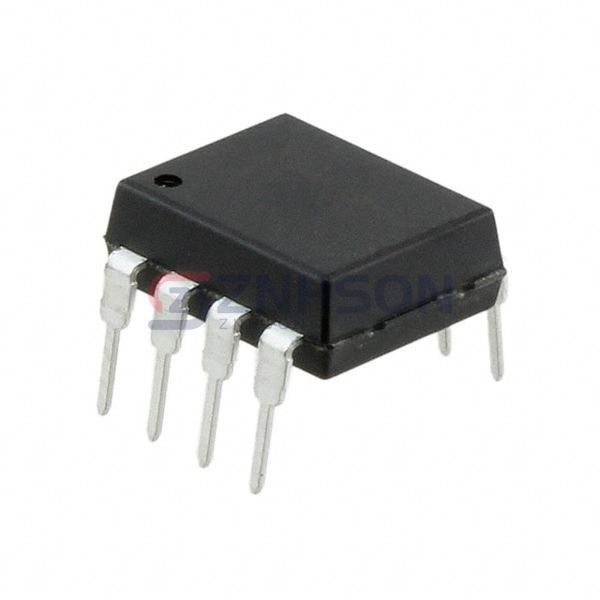

ACNW3190-000E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 1CH GATE DRIVER 8DIP
$7.08
Available to order
Reference Price (USD)
1+
$5.76000
10+
$4.79800
42+
$4.03000
126+
$3.45421
252+
$3.07040
504+
$2.78256
1,008+
$2.55227
2,520+
$2.44673
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Broadcom Limited ACNW3190-000E Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: 5A
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.400", 10.16mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CSA, IEC/EN/DIN, UR
