ACNW3190-300E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 1CH GATE DRIVER 8SMD
$7.15
Available to order
Reference Price (USD)
1+
$7.15000
500+
$7.0785
1000+
$7.007
1500+
$6.9355
2000+
$6.864
2500+
$6.7925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACNW3190-300E Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: 5A
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
- Approval Agency: CSA, IEC/EN/DIN, UR
Related Products
Texas Instruments
UCC23313QDWYQ1
Rohm Semiconductor

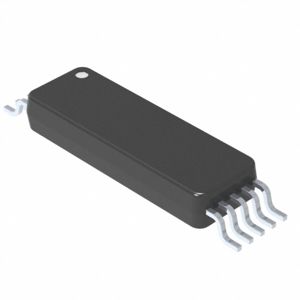

BM61S40RFV-CE2
Analog Devices Inc./Maxim Integrated
MAX22701EASA+
Renesas Electronics America Inc

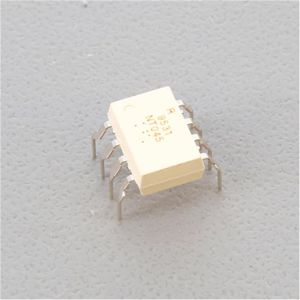

PS9531L1-AX
Power Integrations
SID1102K
Skyworks Solutions Inc.

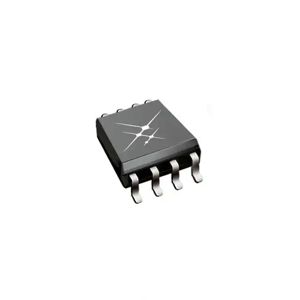

SI8220CB-D-IS
Broadcom Limited
ACPL-H342-500E
Skyworks Solutions Inc.
SI8275ABD-IS1
onsemi

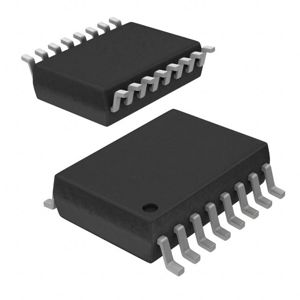

FOD8333R2
