ACPL-021L-000E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 8SO
$1.00
Available to order
Reference Price (USD)
1+
$1.00157
500+
$0.9915543
1000+
$0.9815386
1500+
$0.9715229
2000+
$0.9615072
2500+
$0.9514915
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACPL-021L-000E Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with Broadcom Limited for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 5MBd
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Rise / Fall Time (Typ): 11ns, 11ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 8mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Broadcom Limited
HCPL-523K
Broadcom Limited
HCPL-063A-500E
Broadcom Limited
HCPL-2231-300E
Renesas Electronics America Inc
PS9009-Y-F3-AX
Toshiba Semiconductor and Storage
TLP2766A(E
Broadcom Limited
HCPL-4661-500E
Panasonic Electric Works

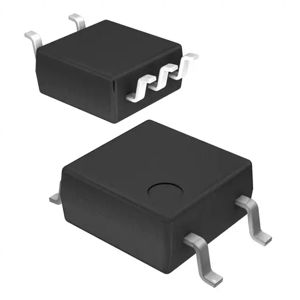

APS1551SZ
