ACPL-061L-000E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV TRI-STATE 8SO
$2.86
Available to order
Reference Price (USD)
1+
$2.86000
500+
$2.8314
1000+
$2.8028
1500+
$2.7742
2000+
$2.7456
2500+
$2.717
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Broadcom Limited ACPL-061L-000E Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Broadcom Limited for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Tri-State
- Current - Output / Channel: 10 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 12ns, 12ns
- Voltage - Forward (Vf) (Typ): 1.3V
- Current - DC Forward (If) (Max): 8mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Broadcom Limited
HCPL-1931
Broadcom Limited
HCPL-0600-560E
Broadcom Limited
HCPL-7723-300
Toshiba Semiconductor and Storage

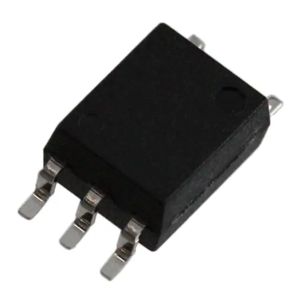

TLP2362(E)
Broadcom Limited
5962-0824201HXA
Renesas Electronics America Inc
PS9851-2-F3-AX
Broadcom Limited
HCPL-5231#300
onsemi

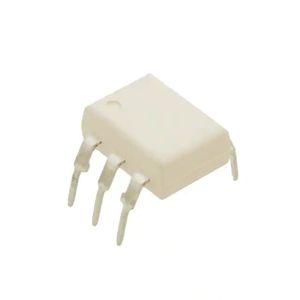

H11L2TVM
