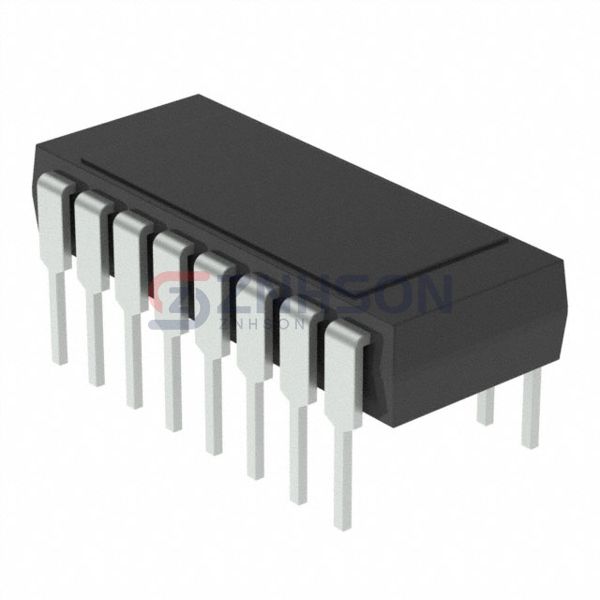

ACPL-2670L
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV 2CH OPEN COL 16DIP
$94.30
Available to order
Reference Price (USD)
1+
$83.55000
10+
$77.98200
25+
$76.58960
100+
$70.18390
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited ACPL-2670L Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 25 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Rise / Fall Time (Typ): 20ns, 8ns
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 3.6V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: 16-CDIP (0.300", 7.62mm)
- Supplier Device Package: 16-CDIP
