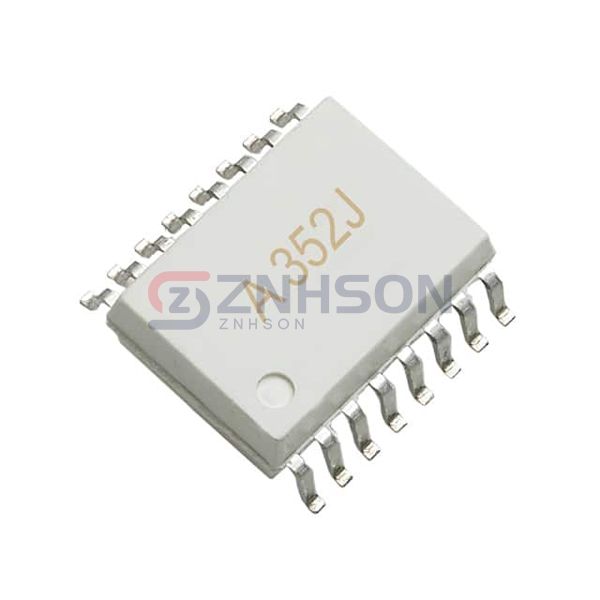

ACPL-352J-500E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 1CH GATE DRVR 16SOIC
$9.39
Available to order
Reference Price (USD)
850+
$3.38512
1,700+
$3.30876
2,550+
$3.18150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Broadcom Limited ACPL-352J-500E Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Propagation Delay tpLH / tpHL (Max): 150ns, 150ns
- Pulse Width Distortion (Max): 50ns
- Rise / Fall Time (Typ): 37ns, 30ns
- Current - Output High, Low: 4.5A, 4.5A
- Current - Peak Output: 5A
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Approval Agency: CSA, IEC/EN/DIN, UR
