ACPL-M75L-000E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 5SO
$3.44
Available to order
Reference Price (USD)
1+
$3.46000
10+
$3.06200
25+
$2.27200
100+
$1.97560
300+
$1.77800
500+
$1.58044
1,000+
$1.35820
2,500+
$1.28412
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Broadcom Limited ACPL-M75L-000E Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Broadcom Limited for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 55ns, 55ns
- Rise / Fall Time (Typ): 3.5ns, 3.5ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 5-SO
Related Products
Vishay Semiconductor Opto Division
VO0661T
Vishay Semiconductor Opto Division
VO2611
Broadcom Limited
5962-8876801PA
Broadcom Limited
HCPL-2219-300E
Broadcom Limited
HCPL-263A-500E
onsemi

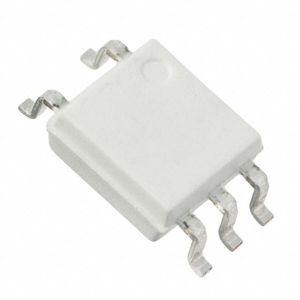

FODM8061R2V
Renesas Electronics America Inc

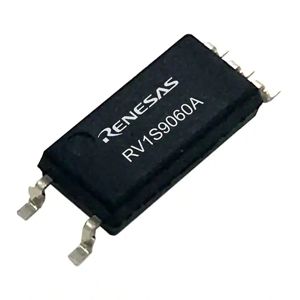

PS9009-Y-V-F3-AX
