ACPL-M75L-500E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 5SO
$3.52
Available to order
Reference Price (USD)
1+
$3.52000
500+
$3.4848
1000+
$3.4496
1500+
$3.4144
2000+
$3.3792
2500+
$3.344
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited ACPL-M75L-500E Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 55ns, 55ns
- Rise / Fall Time (Typ): 3.5ns, 3.5ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 5-SO
Related Products
Broadcom Limited
ACPL-W61L-000E
Broadcom Limited
ACPL-M62L-000E
Toshiba Semiconductor and Storage
TLP2662(D4-TP1,F)
onsemi
FOD8163
Broadcom Limited
HCPL-5301#200
Broadcom Limited
HCPL-061N-000E
Broadcom Limited
ACPL-021L-560E

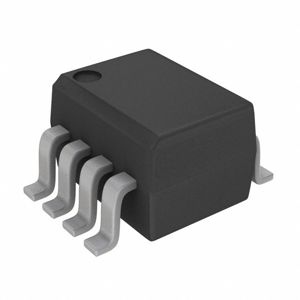

Vishay Semiconductor Opto Division
