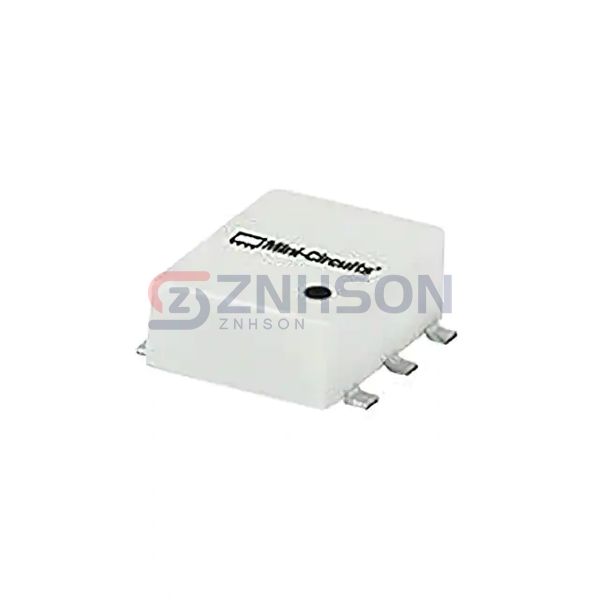

ADC-15-4-75+
Mini-Circuits
Mini-Circuits
RF DIR COUPLER 5MHZ-1GHZ 6SMD
$7.39
Available to order
Reference Price (USD)
1+
$7.38735
500+
$7.3134765
1000+
$7.239603
1500+
$7.1657295
2000+
$7.091856
2500+
$7.0179825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's RF performance with Mini-Circuits's ADC-15-4-75+ high-directivity couplers. These units provide precise 20-30dB coupling factors with outstanding amplitude balance for phase-sensitive applications. The stainless steel housing offers superior corrosion resistance in marine environments. Commonly deployed in quantum computing research and medical imaging systems. Custom frequency ranges available upon request. Email our engineering team for application notes and design-in support.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 5MHz ~ 1GHz
- Coupling Factor: 15.5 ± 0.5dB
- Applications: General Purpose
- Insertion Loss: -
- Power - Max: 1W
- Isolation: -
- Return Loss: 28.5dB
- Package / Case: 6-SMD, Flat Leads
- Supplier Device Package: -
