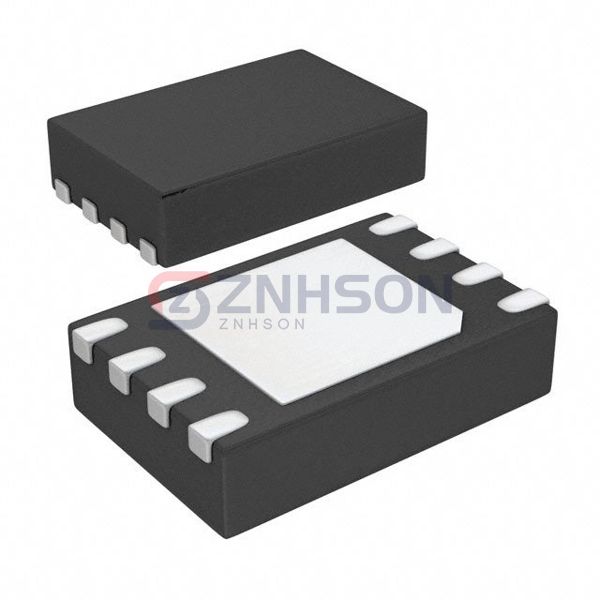

ADG1402BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST 1OHM RON 8LFCSP
$4.58
Available to order
Reference Price (USD)
3,000+
$1.98808
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Analog Devices Inc. ADG1402BCPZ-REEL7 Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.3Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 150ns, 150ns
- -3db Bandwidth: 120MHz
- Charge Injection: -12pC
- Channel Capacitance (CS(off), CD(off)): 36pF, 41pF
- Current - Leakage (IS(off)) (Max): 400pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP-WD (2x3)
