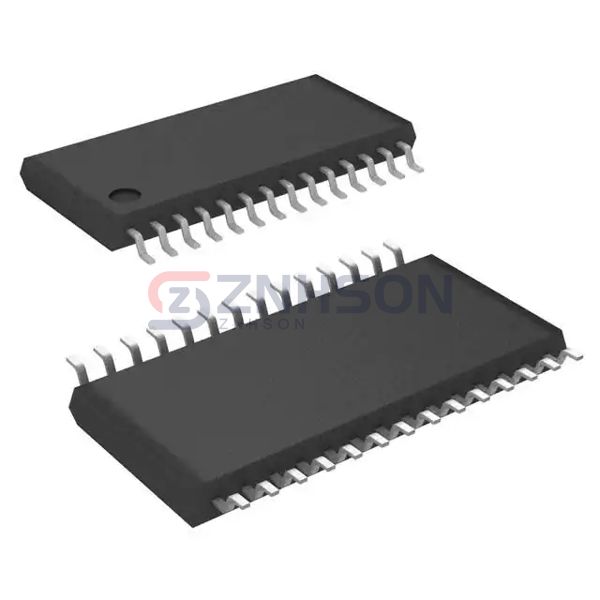

ADG1406BRUZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER 16X1 28TSSOP
$12.89
Available to order
Reference Price (USD)
1,000+
$7.06576
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADG1406BRUZ-REEL7 series of Analog Switches, Multiplexers, and Demultiplexers offers precision and reliability for critical signal routing tasks. Ideal for automotive, aerospace, and telecommunications applications, these ICs ensure low on-resistance and high bandwidth performance. Simplify your circuit design with our robust Interface solutions. For pricing and availability, reach out to our sales team today and experience the Analog Devices Inc. difference.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 550mOhm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 110ns, 120ns
- -3db Bandwidth: 60MHz
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 8pF, 90pf
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 28-TSSOP
