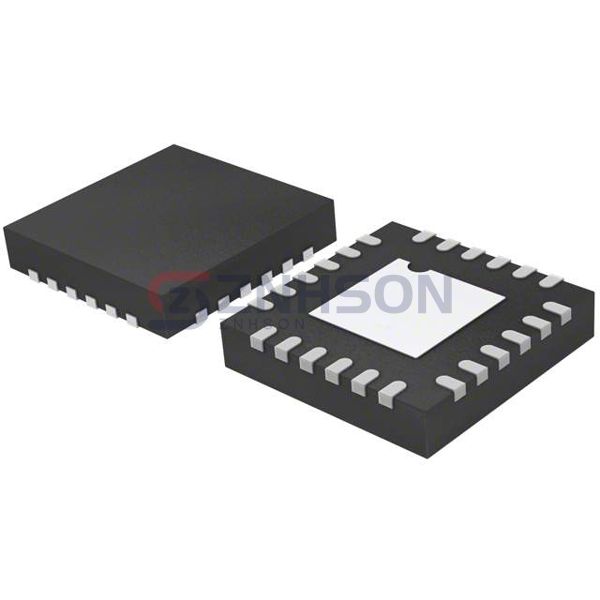

ADG1414BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SW SPST 9.5OHM RON 24LFCSP
$8.96
Available to order
Reference Price (USD)
1,500+
$4.40411
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Analog Devices Inc. ADG1414BCPZ-REEL7 Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Analog Devices Inc. for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 8
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 550mOhm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 93ns, 35ns
- -3db Bandwidth: 256MHz
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 8pF
- Current - Leakage (IS(off)) (Max): 150pA
- Crosstalk: -75dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
