ADG212AKP-REEL
Analog Devices Inc.
Analog Devices Inc.
QUAD SPST SWITCH
$1.28
Available to order
Reference Price (USD)
1+
$1.28000
500+
$1.2672
1000+
$1.2544
1500+
$1.2416
2000+
$1.2288
2500+
$1.216
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADG212AKP-REEL series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Analog Devices Inc.'s expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 115Ohm
- Channel-to-Channel Matching (ΔRon): 5.75Ohm
- Voltage - Supply, Single (V+): 15V, ±15V
- Voltage - Supply, Dual (V±): 15V, ±15V
- Switch Time (Ton, Toff) (Max): 600ns, 450ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -80dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

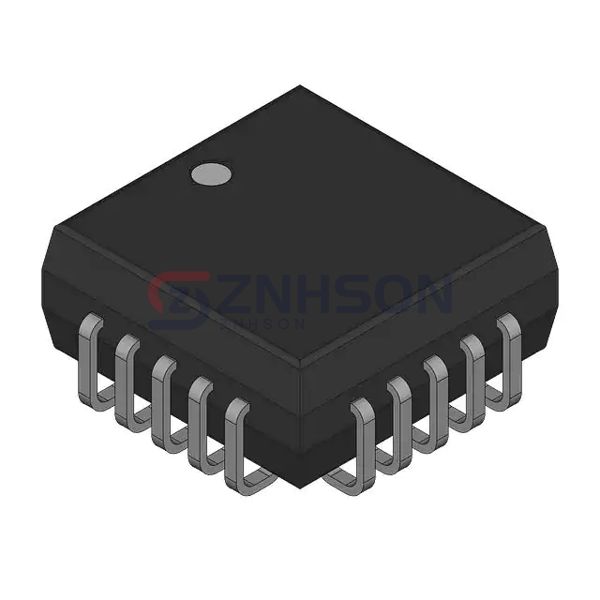

- Package / Case: 20-LCC (J-Lead)
- Supplier Device Package: 20-PLCC (9x9)
