ADG5412BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST 16LFCSP
$6.74
Available to order
Reference Price (USD)
1,500+
$3.08252
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Analog Devices Inc. ADG5412BCPZ-REEL7 Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 350mOhm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 187ns, 138ns
- -3db Bandwidth: 160MHz
- Charge Injection: 310pC
- Channel Capacitance (CS(off), CD(off)): 17pF, 17pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (4x4)
Related Products
Analog Devices Inc./Maxim Integrated
MAX4530EAP+
Analog Devices Inc./Maxim Integrated

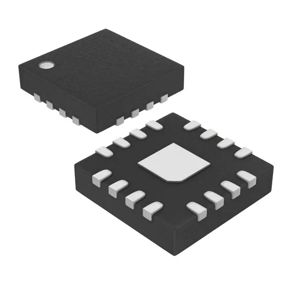

MAX4694ETE+
Analog Devices Inc./Maxim Integrated

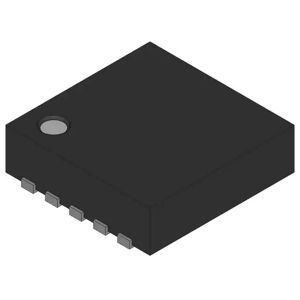

MAX4684ETB
Analog Devices Inc.
ADG661BRU-REEL7
Analog Devices Inc./Maxim Integrated
MAX4051ACPE+
Analog Devices Inc./Maxim Integrated

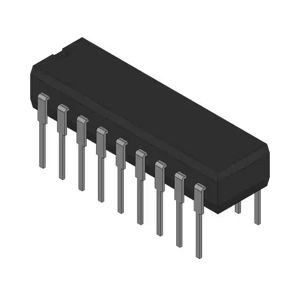

DG528AK
onsemi

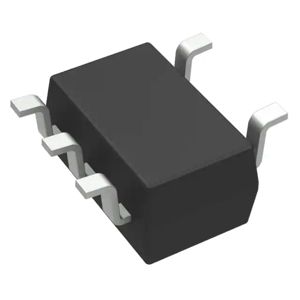

M74VHC1GT66DTT1G
