ADG5412FTRUZ-EP-R7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST 16TSSOP
$17.34
Available to order
Reference Price (USD)
1,000+
$13.79963
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Analog Devices Inc. ADG5412FTRUZ-EP-R7 Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 8V ~ 44V
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 500ns, 515ns
- -3db Bandwidth: 270MHz
- Charge Injection: -640pC
- Channel Capacitance (CS(off), CD(off)): 12pF, 11pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
Related Products
Union Semiconductor (HK) Limited
UM7222
Analog Devices Inc.
ADG413BRUZ
Analog Devices Inc.
ADG511BRZ
Analog Devices Inc.
ADG659YRUZ
Intersil
5962-8996101EA
Intersil
ISL5123CB
Texas Instruments

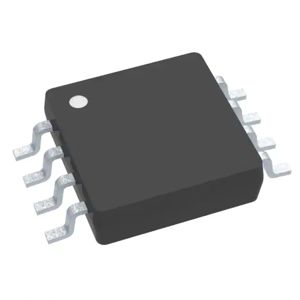

TMUX1121DGKR
Analog Devices Inc.

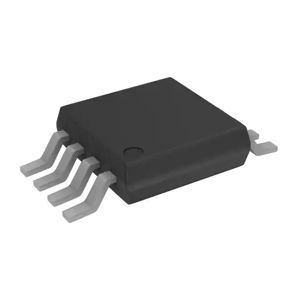

ADG723BRM-REEL7
