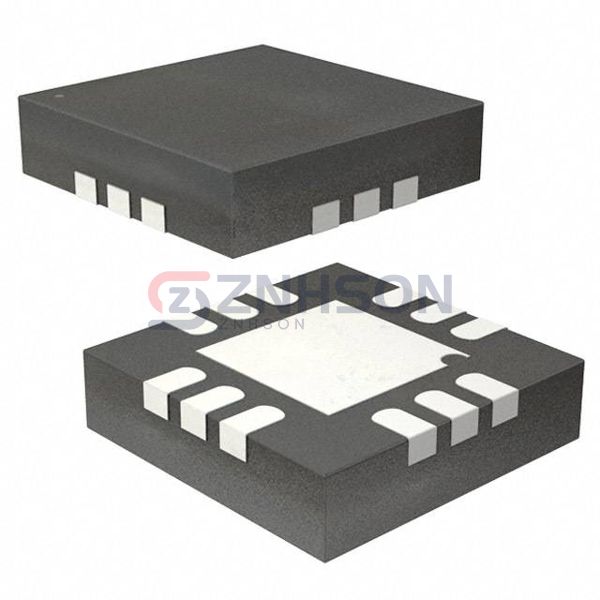

ADG772BCPZ-1REEL
Analog Devices Inc.
Analog Devices Inc.
IC MUX/DEMUX DUAL SPDT 12LFCSP
$2.85
Available to order
Reference Price (USD)
5,000+
$1.08979
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Analog Devices Inc. ADG772BCPZ-1REEL Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 6.7Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 40mOhm
- Voltage - Supply, Single (V+): 2.7V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 12.5ns, 9.5ns
- -3db Bandwidth: 630MHz
- Charge Injection: 0.5pC
- Channel Capacitance (CS(off), CD(off)): 2.4pF, 6.9pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFQFN Exposed Pad, CSP
- Supplier Device Package: 12-LFCSP (3x3)
