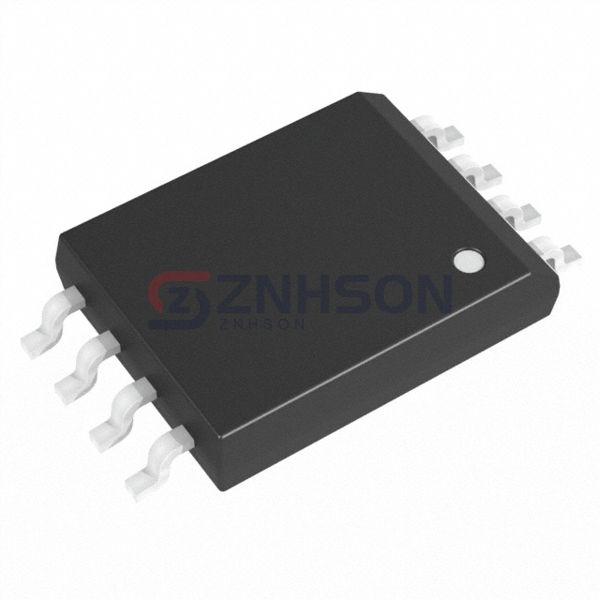

ADUM4121-1TRIZ-EP
Analog Devices Inc.
Analog Devices Inc.
ISO GATE DRVR W/MILLER CLAMP W/O
$9.66
Available to order
Reference Price (USD)
1+
$8.00000
80+
$6.89475
160+
$5.98669
560+
$5.21311
1,040+
$4.54045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Analog Devices Inc. ADUM4121-1TRIZ-EP Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 150kV/µs
- Propagation Delay tpLH / tpHL (Max): 42ns, 53ns
- Pulse Width Distortion (Max): 13ns
- Rise / Fall Time (Typ): 18ns, 18ns
- Current - Output High, Low: -
- Current - Peak Output: 2.3A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 7.5V ~ 35V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SOIC-IC
- Approval Agency: CQC, CSA, UL, VDE
