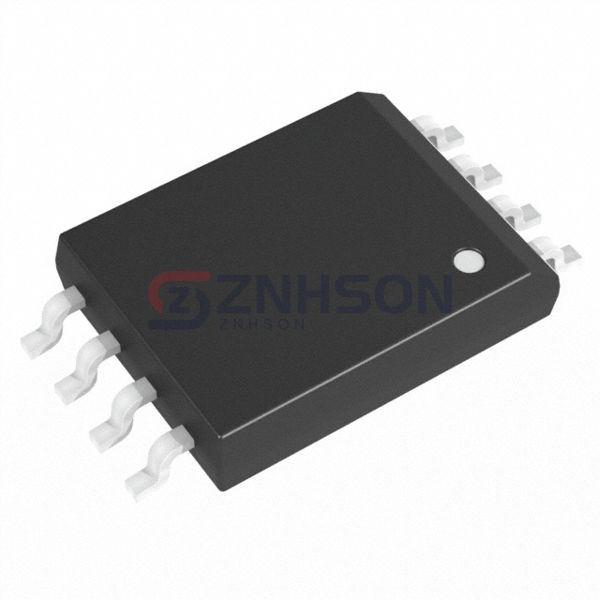

ADUM4122ARIZ
Analog Devices Inc.
Analog Devices Inc.
IGBT GATE DRIVER W/ SLEW RATE CO
$6.96
Available to order
Reference Price (USD)
1+
$6.96000
500+
$6.8904
1000+
$6.8208
1500+
$6.7512
2000+
$6.6816
2500+
$6.612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your designs with Analog Devices Inc. ADUM4122ARIZ Gate Driver Isolators, offering top-tier isolation and signal integrity. These isolators are equipped with high noise rejection, fast switching speeds, and compliance with international safety standards. Suitable for traction inverters, test equipment, and more, they ensure peak performance. Start your order process contact us today!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 150kV/µs
- Propagation Delay tpLH / tpHL (Max): 40ns, 48ns
- Pulse Width Distortion (Max): 30ns
- Rise / Fall Time (Typ): 17ns, 17ns
- Current - Output High, Low: 3A, 3A
- Current - Peak Output: 2A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 35V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SOIC-IC
- Approval Agency: CQC, CSA, UL, VDE
