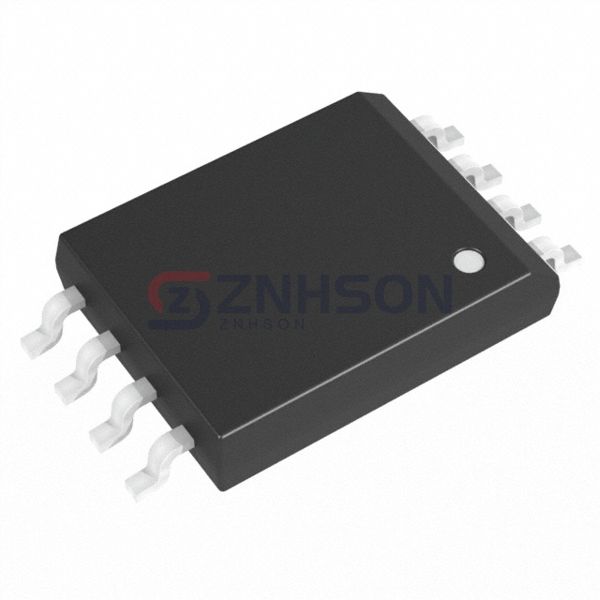

ADUM4122BRIZ
Analog Devices Inc.
Analog Devices Inc.
IGBT GATE DRIVER W/ SLEW RATE CO
$6.96
Available to order
Reference Price (USD)
1+
$6.96000
500+
$6.8904
1000+
$6.8208
1500+
$6.7512
2000+
$6.6816
2500+
$6.612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADUM4122BRIZ Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 150kV/µs
- Propagation Delay tpLH / tpHL (Max): 40ns, 48ns
- Pulse Width Distortion (Max): 30ns
- Rise / Fall Time (Typ): 17ns, 17ns
- Current - Output High, Low: 3A, 3A
- Current - Peak Output: 2A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 7.5V ~ 35V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SOIC-IC
- Approval Agency: CQC, CSA, UL, VDE
