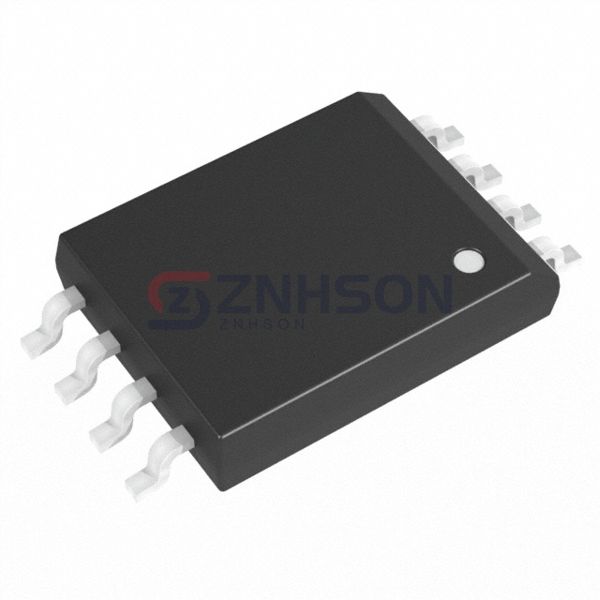

ADUM4122BRIZ-RL
Analog Devices Inc.
Analog Devices Inc.
IGBT GATE DRIVER W/ SLEW RATE CO
$4.14
Available to order
Reference Price (USD)
1+
$4.14000
500+
$4.0986
1000+
$4.0572
1500+
$4.0158
2000+
$3.9744
2500+
$3.933
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADUM4122BRIZ-RL Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 150kV/µs
- Propagation Delay tpLH / tpHL (Max): 40ns, 48ns
- Pulse Width Distortion (Max): 30ns
- Rise / Fall Time (Typ): 17ns, 17ns
- Current - Output High, Low: 3A, 3A
- Current - Peak Output: 2A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 7.5V ~ 35V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SOIC-IC
- Approval Agency: CQC, CSA, UL, VDE
