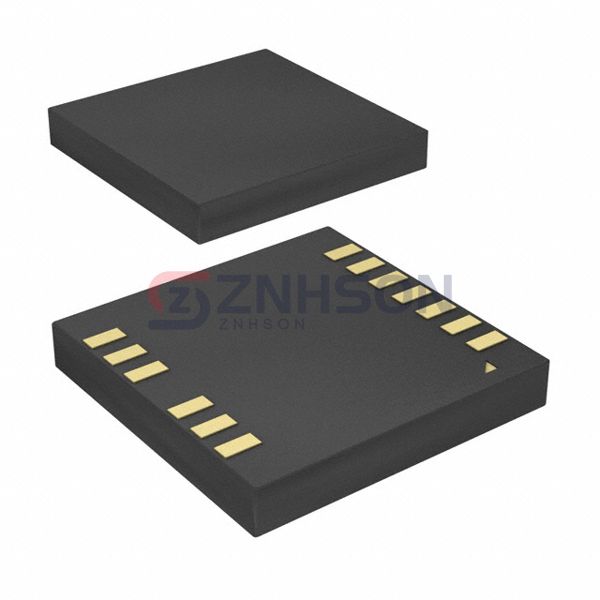

ADUM7223ACCZ-RL7
Analog Devices Inc.
Analog Devices Inc.
DGTL ISO 2.5KV GATE DRIVER 13LGA
$5.56
Available to order
Reference Price (USD)
1+
$5.56000
500+
$5.5044
1000+
$5.4488
1500+
$5.3932
2000+
$5.3376
2500+
$5.282
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADUM7223ACCZ-RL7 Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 50kV/µs
- Propagation Delay tpLH / tpHL (Max): 68ns, 68ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 12ns, 12ns
- Current - Output High, Low: -
- Current - Peak Output: 4.5A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 13-VFLGA
- Supplier Device Package: 13-LGA (5x5)
- Approval Agency: -
