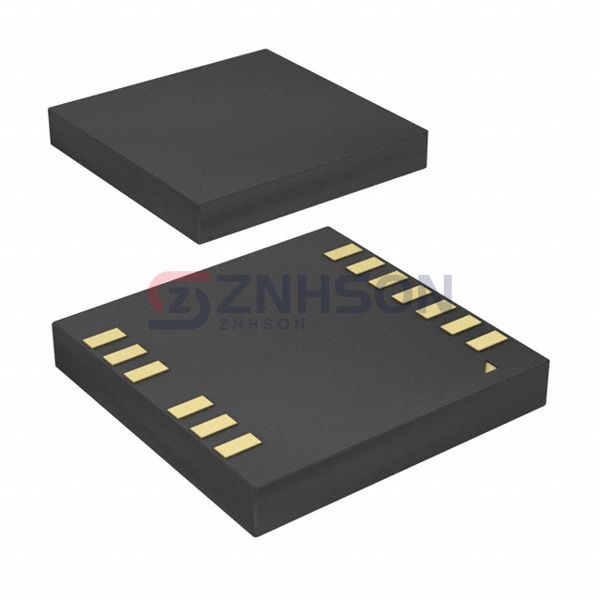

ADUM7223BCCZ-RL7
Analog Devices Inc.
Analog Devices Inc.
DGTL ISO 2.5KV GATE DRIVER 13LGA
$5.56
Available to order
Reference Price (USD)
1,000+
$2.54520
2,000+
$2.41794
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Analog Devices Inc. ADUM7223BCCZ-RL7 Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 50kV/µs
- Propagation Delay tpLH / tpHL (Max): 62ns, 62ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 12ns, 12ns
- Current - Output High, Low: -
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 13-VFLGA
- Supplier Device Package: 13-LGA (5x5)
- Approval Agency: -
