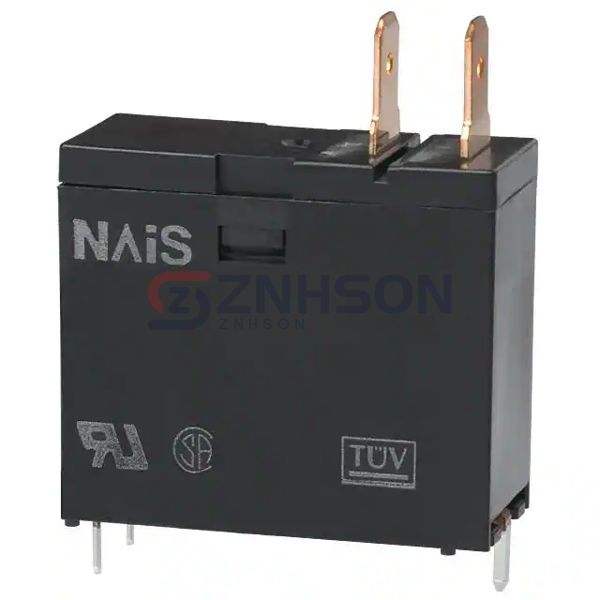

ALE75F09
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPST 16A 9V
$2.08
Available to order
Reference Price (USD)
100+
$1.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Panasonic Electric Works ALE75F09 series represents the next generation of high-amperage Power Relays, combining innovative coil designs with vibration-resistant mechanics. Ideal for harsh environments in marine, aerospace, and oil/gas industries. Features include LED operation indicators and solder/quick-connect terminals. Inquire about our relay customization services today!
Specifications
- Product Status: Not For New Designs
- Mounting Type: Through Hole
- Coil Voltage: 9VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 16 A
- Switching Voltage: 277VAC - Max
- Coil Current: 22.2 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: -
- Coil Insulation: Class F
- Must Operate Voltage: 6.75 VDC
- Must Release Voltage: 0.45 VDC
- Operate Time: 20 ms
- Release Time: 25 ms
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
Related Products
TE Connectivity Potter & Brumfield Relays
6-1393231-6
Omron Electronics Inc-EMC Div
G7L-2A-X DC12
TE Connectivity Potter & Brumfield Relays
KUP-14D55-48
NTE Electronics, Inc
R17-17A10-24
IDEC
RR2P-UDC48V
Finder Relays, Inc.
38.51.0.024.0060
Omron Electronics Inc-EMC Div
G5CA-1A4-H DC12
Weidmüller

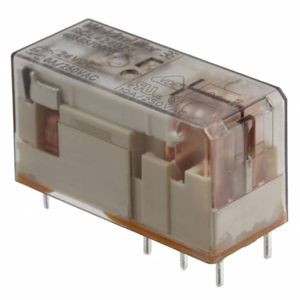

4058570000
IDEC

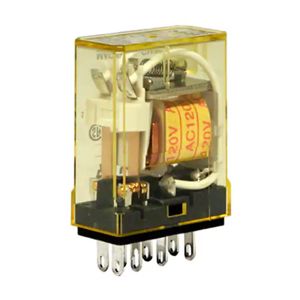

RY2S-ULAC24V
