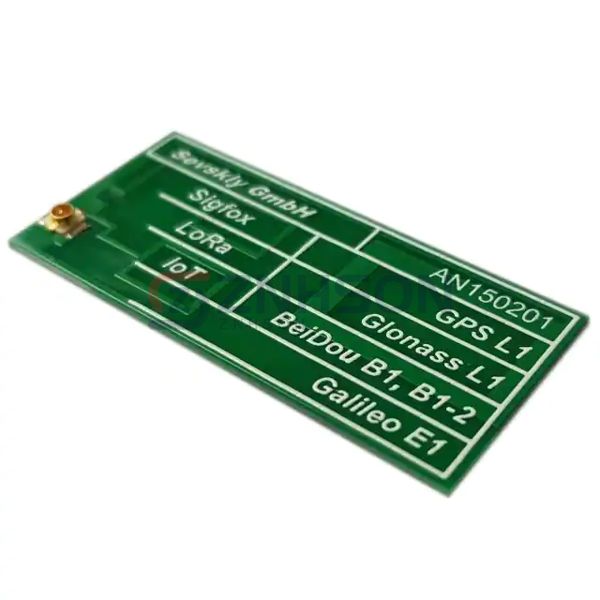

AN150201-01H

Sevskiy GmbH

Manufacturer

Sevskiy GmbH

Description:

RF ANT 915MHZ/1575MHZ/2GHZ PCB

Datasheet:

AN150201-01H Datasheet

$2.69

Available to order

Reference Price (USD)

$2.69000

500+

$2.6631

1000+

$2.6362

1500+

$2.6093

2000+

$2.5824

2500+

$2.5555

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your RF performance with AN150201-01H RF Antennas by Sevskiy GmbH, designed for excellence in every detail. These antennas come with features like multi-band support, easy integration, and superior durability, making them ideal for public safety, marine communication, and data transmission. Sevskiy GmbH ensures top-notch products tailored to your needs. Reach out today for expert advice and a competitive quote!

Specifications

Product Status: Active
RF Family/Standard: Cellular, General ISM
Frequency Group: UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band): 868MHz, 915MHz, 1.575GHz, 2GHz
Frequency Range: 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz
Antenna Type: PCB Trace
Number of Bands: 3
VSWR: 3, 3, 3
Return Loss: -6dB, -6dB, -6dB
Gain: 1.2dBi, 1.4dBi, 1.1dBi
Power - Max: 10 W
Features: -
Termination: U.FL (UMCC), IPEX MHF1
Ingress Protection: -
Mounting Type: Connector Mount
Height (Max): 0.039" (1.00mm)
Applications: 2G, 3G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, NB-IoT, UMTS
